HCR製品紹介
HCR製品グレード

HCR (HIGH CONSISTENCY SILICONE RUBBER : 固相シリコン)

シリコーンゴムは硬化温度にしたがって熱を加えることで硬化する高温硬化用(HTV)と常温で自然硬化する常温硬化用(RTV)に分類されます。

高温硬化型ゴムは原料ポリマーの重合度にしたがいミラブル型シリコーンゴム(Millable Rubber)と液状シリコーン(Liquid Silicone Rubber)に大きく分けることができます。ミラブル型ゴムはポリオガノシロキサン(シリコーンポリマー)を主原料とし、シリカ系の補強性充填材、さまざまな特性を付与するための各種添加剤を配合しベースコンパウンド(compound)を製造し、次の加硫剤を添加して加熱硬化する形態のゴムです。

他の有機系ゴムでは見ることのできない耐熱、耐寒、耐油、耐薬品、難燃、ガス透過、生理的不活性(無毒性)および電気的に優秀な特性を持っており、電気•電子産業分野のみならず事務機器、自動車、食品、レジャー用品などすべての産業分野に幅広く使用されています。

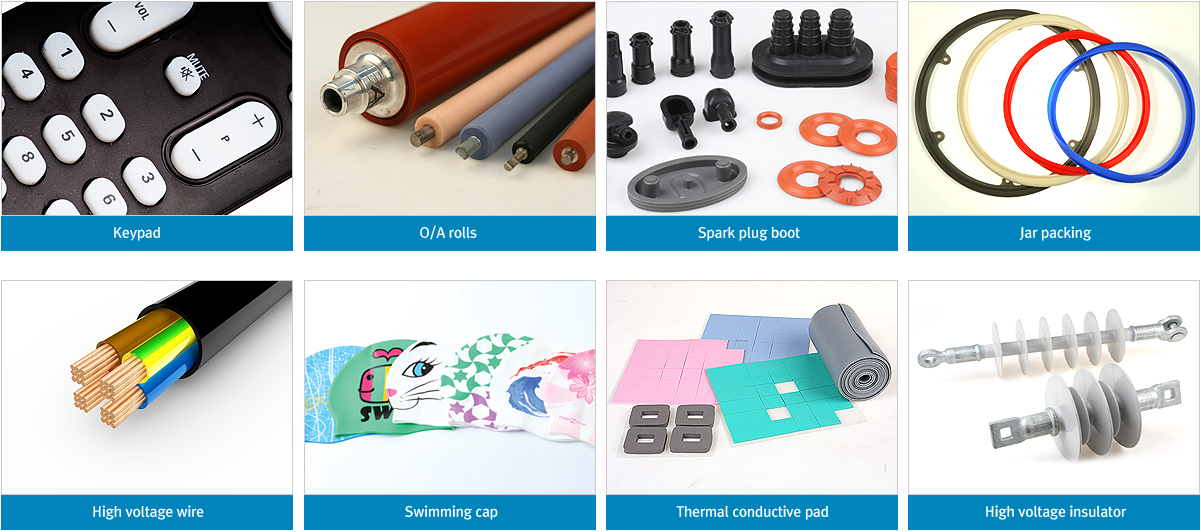

HCR応用製品

製品お問い合わせ : 平澤(ピョンテク)工場営業チーム / 82-31-655-8822

HCR 標準グレード

* TL(Translucent), NG(Natural Gray), TP(Transparent), BW(Beige White), BK(Black), DG(Dark Gray), W(White), G(Gray), NW(Natural White), LY(Light Yellow)

タイプ	HRS製品グレード	色	硬度(Shore A)	お勧め用途
GENERAL PURPOSE FOR MOLDING GRADE (UL-94HB)	HR-1931U(T)	TL	30	- General Industrial Parts - Electronic Parts, Keypad, O/A rolls - Food contact parts, packing - Automotive parts
	HR-1941U(T)	TL	40
	HR-1951U(T)	TL	50
	HR-1961U(T)	TL	60
	HR-1971U(T)	TL	70
	HR-1975U(T)	TL	75
	HR-1981U(T)	TL	80
	HR-1961U(G)	NG	60
	HR-1971U(G)	NG	70
	HR-1981U(G)	NG	80
GENERAL PURPOSE FOR EXTRUSION GRADE	BASE-30U	TP	31	- All molded articles gaskets, packing, O-ring, profiles and general high temp wires - Food contact packing - Electrical article (Wire & cable)
	BASE-50U	TP	51
	BASE-60U	TP	60
	BASE-70U	TP	70
	BASE-75U	TP	75
	BASE-75U	TP	75
GENERAL PURPOSE GRADE FOR AUTOMOTIVE	HR-5006U	TP IVORY	52	- All industrial articles - O-ring, Gaskets - Automotive article
NO POST CURE GRADE	HR-NPC-140	TP	42	- All industrial rubber articles (molded, extruded) - Industrial rolls. - Seal packing, Gaskets, Sheets.
NO POST CURE GRADE	HR-NPC-180	BW	80
ADDITION CURE GRADE	AD-1150	TP	50	- Food Contact article (Hoses, Tubing, Packing) - Healthcare, Medical Devices (Seal, Tubings)
ADDITION CURE GRADE	AD-3960	-	60	- Smart Phone Case

HCR 特集グレード

* TL(Translucent), NG(Natural Gray), TP(Transparent), BW(Beige White), BK(Black), DG(Dark Gray), W(White), G(Gray), NW(Natural White), LY(Light Yellow), B(Beige)

タイプ	HRS製品グレード	色	硬度(Shore A)	お勧め用途
LOW HARDNESS GRADE	SW-5	TL	8	- Swimming Cap, Goggle bands - Baby Care - High elastic article (Strip, Tape)
	SW-8	TL	10
	SW-15U	TL	15
	SW-20U	TL	20
SUPER HIGH HARDNESS GRADE	HR-1991U(T)	LY	90	- Keytop of keypad - O-ring, Gasket, Seals - Food Contact article (Kichenwere, bottles)
SUPER HIGH HARDNESS GRADE	HR-2290U(T)	TP	90
HIGH TEAR STRENGTH GRADE	HR-2500/40U	TP	40	- High Property Articles - Medical Rubber Articles (Tubing, Hose) - Food Contacted Articles - Sheet, Gasket - Aircraft Articles - Automotive article (Muffler hanger)
	HR-2500/50U	TP	51
	HR-2500/60U	TP	61
	HR-2500/70U	TP	71
SUPER HIGH TEAR STRENGTH GRADE	HR-NS-55U	TL	57	- Excellent Mechanical Strengths - Superior Tear Strength - High modulus - Easy to blend color pigments - Extrusion and molding - Calendering and Sheeting - Automotive Parts
SUPER HIGH TEAR STRENGTH GRADE	HR-NS-75U	TL	74
LOW COMPRESSION SET GRADE	LCS40	TP	40	- O/A Roll - Packing - Gasket - Sheet - O-Ring - Seal
STEAM RESISTANCE GRADE	HR-3700/50U	TP	50	- Rice Steam Cooker Packing - Electric pot, teapot, packing, valves, O-ring - Steam Line Packing
	HR-3700/60U	TP	60
	HR-3700/70U	TP	70
METAL CASTING GRADE	MC-50	TP	50	- ALLOY CASTING - ART ACCESSORY CASTING - RING CASTING - OTHER CASTING
	MC-60	TP	60
	MC-70	TP	70
ELECTRIC CONDUCTIVE GRADE	HR-1526U	BK	60	- Electro conductive parts - Keypad contractors - LCD Zebra - EMI gasket - Cable connectors - Heaters
	HR-1527U	BK	70
	HR-1538U	BK	78
THERMAL CONDUCTIVE GRADE	HR-770/60U	DG	60	- Heat transfer pads, Sheets, Packings - CPU, Transformer, Transistor pads for heat transfer - All kind of heat transfer parts
	HR-770/70U	DG	70
	HR-770/80U	DG	80
FLAME RETARDANT GRADE	HR-5020U	W/BK	55	- Flame Retardant Rubber Parts - Construction article (Fire- Proof gasket) - PDP,TFT-LCD Lamp holder - Special Wires
FLAME RETARDANT GRADE	HR-7020U	W/BK	70
WIRE & CABLE GRADE	HR-1660U	W	63	- Appliance wire (Braided or Non-Braided) - Fixture wire (Braided or Non-Braided) - Motor lead wires (Braided or Non-Braided) - Heater lead wires (Braided or Non-Braided) - Power control and instrument cables - Automotive wires (Braided)
WIRE & CABLE GRADE	HR-1670U	W	70
HIGH VOLTAGE INSULATOR GRADE	HVI-65U	G	65	- Suspension Insulation - Line Post Insulator - Surge Arrestor - Cable Terminator and Connectors
HIGH VOLTAGE INSULATOR GRADE	HVI-70U	G	70
OIL BLEED GRADE	SL-30U	NW	30	- Automotive article (Wire harness connectors, grommets, single wire gasket, flat gaskets) - Industrial O-Ring, Oil Seal
	SL-40U	NW	40
	SL-50U	NW	50
	SL-60U	NW	60
HIGH TRANSPARENT GRADE	HR-2130U	TP	30	- Baby Nipples - Medical tubing - Food contact articles - High tear strength articles
	HR-2140U	TP	40
	HR-2150U	TP	50
	HR-2160U	TP	60
	HR-2170U	TP	70
HIGH HEAT RESISTANCE GRADE	HR-520U	LY	52	- Electric Dry-oven Gaskets - Electronic Micro-oven Gaskets - Autoclave Packing - Glass tube handling of Pads
	HR-620U	LY	60
	HR-720U	LY	72
	HR-820U	BW	80
CLOSED CELL SPONGE GRADE	SPG-30	W	0	- Dry oven gaskets, Seals - Building glazing gasket, seals - Building movement gap absorbing gasket - Food container gasket, packing - Hot liquid pipe line insulation - O/A Rolls - Many suitable application
	SPG-50	W	0
	SPG-60	W	0
	SPG-70	W	0
HIGH PERFORMANCE EXTRUSION MOLDING GRADE	BASE-300U	TP	35	- Automotive Parts - Electrical Parts - Food Contacted articles - Tubings, Hoses - Profiles Packings - Sheets - All Molded & Extruded Products
	BASE-500U	TP	53
	BASE-700U	TP	70
SPACER PANEL GRADE	HR-SPR	TL	42	- General Industrial Parts - Electronic Parts, Keypad, O/A rolls - Food contact parts, packing - Automotive parts
HIGH VOLTAGE CABLE GRADE	HR-700UHV	TP	70	- High voltage FBT cable of electric microwave oven - High voltage C/TV cable/wires - High voltage aircraft cable - High voltage ignition cable of automobile - High voltage parts, bushing, insulation tubes
OIL RESISTANT GRADE	HR-707/60U	NG	60	- O-Ring, Automotive Rubber Parts, Seals.
	HR-707/70U	NG	71
	HR-707/80U	NG	81
HIGH TRANSPARENT HIGH TEAR STRENGTH GRADE	HR-1130U	TP	30	- Baby Nipples (HR-1140) - Goggles (HR-1150, 1160, 1170) - Medical products - Food contact products - High mechanical products
	HR-1140U	TP	41
	HR-1150U	TP	52
	HR-1160U	TP	60
	HR-1170U	TP	70
LOW HARDNESS & HIGH ELASTIC GRADE	HR-1921U(T)	TL	20	- O/A Rolls (Low hardness) replace RTV. - Automotive connector sealing parts 　(protect humidity, water, dust...) - Zebra connectors - Soft packings & caps
HIGH STRENGTH GRADE	HR-431	TP	40	- High Mechanical Articles - Food Contact Articles. - Medical Articles (For External use only) - Air Craft Parts
	HR-531	TP	50
	HR-731	TP	70
HIGH TEMPERATURE UL WIRE GRADE	HR-60HT	B	60	- Wire and cables - Tubing, Profiles - Gaskets, Packing
	HR-65HT	B	65
	HR-70HT	B	70
HIGH VOLTAGE RESISTANT GRADE	HRV-3/40	TP	40	- Cable connectors - Silicone rubber insulators - Electrical insulation tubes, sleeves - High voltage cable insulation
	HRV-3/50	TP	50
	HRV-3/60	TP	60
	HRV-3/70	TP	70
CERAMIFIABLE HCR SILICONE FOR SAFETY CABLES GRADE	HR-6023U(W)_HC2	W	60	- For flame resistant cable
	HR-6023U(W)_DCP	W	64
	HR-7023U(W)_HC2	W	72
	HR-7023U(W)_DCP	W	77
AUTOMOTIVE MUFFLER HANGER GRADE	HR-9300MH	TP	50	- High Property Articles - Medical Rubber Articles - Food Contacted Articles - Sheet, Gasket - Aircraft Articles - Muffler Hanger
KEYPAD APPLICATION GRADE	HR-2960U(T)	TL	60	- Keyboard for musical instruments - Transilluminate type key unit for cellular phones - O-rings, gaskets, diaphragms, boots, sheets
KEYPAD APPLICATION GRADE	HR-2970U(T)	TL	70
SELF- ADHESIVE GRADE	SAT-600U	TP	50±5	- Electronic Insulation Tape
ROLL COVERING GRADE	HR-785/60	B	60	- Industrial roll covering - Industrial packing, gasket, bushings - O-ring. Seals
	HR-785/70	B	70
	HR-785/80	B	80
ROLL COVERING GRADE (STEAM CURING METHOD)	HR-7470	B	70	- Industrial rolls - Laminating rolls - Stamping rolls - Industrial rubber articles
	HR-7480	B	82
	HR-7490	B	90
